Supporto tecnico per i clienti sulle principali funzioni, funzionamento e manutenzione dei camion dei pompieri, nonché il servizio post-vendita più professionale per i camion dei pompieri.
ISUZU QL1070BUKWY foam tender fire service truck drawing, also called as Isuzu foam fire vehicle drawing or Isuzu rescue fire truck drawing, is composed of components such as the Isuzu QL1070BUKWY chassis, water and foam tanks, fire pump, piping system, and instrument & electrical system. The Isuzu chassis Foam Tank Fire Truck is equipped with a detachable aluminum alloy rear ladder, and the pump room is located at the rear of the truck. The tanks adopt a steel plate welded structure, with a water capacity of 1.36 cubic meters and a foam liquid capacity of 0.5 cubic meters. ▶Truck Model : ISUZU Foam tender fire service truck ▶Speficiation : 1500 L water + 500 L foam ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location ISUZU 4x2 Foam Fire Truck 1500 liters, 500 Liters Fire rescue department ISUZU QL1070BUKWY foam tender fire service truck drawing Item Specification Vehicle Model CS5070GXFPM20/Q6A Overall Dimensions 6800×1990×2990 mm Gross Vehicle Mass 6800 kg Liquid Capacity 1500 L (Water); 500 L (Foam) Max. Speed 95 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 24 L/s @ 0.8 MPa Fire Monitor Range ≥55 m (Water); ≥42 m (Foam) Approach Angle / Departure Angle 24° / 14° New ISUZU 2000L water foam fire fighting trucks technical drawing share 2026 ISUZU Foam fire vehicle CAD drawing share 2026 ISUZU cab chassis fire truck drawing share Original technical drawing for Isuzu foam fire engine Isuzu chassis Foam Tank Fire Truck technical drawing The water tank of Isuzu foam fire truck is made of high-quality carbon steel plate with anti-corrosion treatment on the inner wall, while the foam tank is made of 304 stainless steel. The fire truck is fitted with a Model CB10/30 fire pump and a Model PL8/24 dual-purpose fire monitor. Item Specification Chassis Model Isuzu 600P QL1070BUKWY, China National Stage VI Emission Drive Type 4×2 Wheelbase 3815 mm Max. Speed 115 km/h Engine Model 4KH1CN6LB Rated Power 88 KW Gross Mass 7020 kg ISUZU Fire engine front view Foam tender Front right view Foam fire vehicle rear view Item Specification Capacity 1360 L (Water); 500 L (Foam) Material Water tank: high-quality carbon steel plate with internal anti-corrosion treatment. - Bottom plate: 4 mm carbon steel plate - Side plates & end plates: 3 mm carbon steel plate - Top plate: 3 mm carbon steel checkered plate Foam tank: high-quality stainless steel plate. - Bottom plate: 4 mm stainless steel plate - Side plates & end plates: 3 mm stainless steel plate - Top plate: 3 mm stainless steel checkered plate Structure Steel plate welded structure with internal anti-slosh baffles Equipments • 1 manhole cover with quick locking and opening device...
The CS5030TXFQC15 Dongfeng Nissan RIV fire pickup Vehicle is modified on the basis of the Dongfeng Nissan ZN1033UCM6A 4WD pickup truck. The complete vehicle mainly consists of a double-cab pickup chassis with high maneuverability, warning lights, interior pull-out equipment trays and other components. Dongfeng Nissan RIV fire pickup drawing share ▶Truck Model : Dongfeng Nissan Rescue Fire pickup ▶Speficiation : Quickly rescue ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location DONGFENG NISAN 4x4 Fire pickup Lighting and fire equipments Fire rescue department Core Purpose: 01: Used for the transportation of emergency rescue equipment and materials in sudden natural disasters, safety accidents, fires and other emergencies. 02: Military, public security special service, fire rescue support. Item Specification Overall Dimensions (mm) 5537 × 1850 × 1950 Curb Weight (kg) 2205 Gross Vehicle Weight (kg) 2580 Engine Power (kW) 122 Number of Occupants 2+3 Maximum Speed (km/h) 155 Approach Angle / Departure Angle (°) 33 / 25 Specific Power (kW/T) 47.29 Emission Standard GB18352.6-2016 China Ⅵ Emergency Repair 03: Inspection and emergency repair of pipelines for petroleum, chemical industry, natural gas, water supply and power supply. 04: Transportation of equipment and materials for emergency repair and maintenance of equipment faults such as high-voltage power transmission and transformation lines, expressways and mines. Nissan fire pickup front view Side view fire pickup Rear view fire pickup Documents on board Item 01 Vehicle Technical Documents 02 Chassis Operation Manual 03 Chassis Number Rubbing 04 Chassis Maintenance Manual 05 Fire Truck Operation Manual 06 Chassis Quality Warranty Card 07 Fire Truck Certificate of Conformity 08 Chassis Certificate of Conformity 09 Fire Truck After-Sales Tracking Service Card 10 A Set of Chassis Tools 11 Fire Truck Handover List 12 Engine Number Rubbing Dongfeng Nissan Rescue Fire Pickup Factory Pictuers Main features of Dongfeng Nissan fire pickup:(1) High maneuverability and strong passability;(2) Equipped with pull-out equipment trays inside the vehicle for convenient and quick access.
FOTON 4x4 1500L Fire Pickup Rapid intervention vehicle, also named FOTON rescue pickup or Foton rapid fire engine, are widely used in various emergency rescue scenarios due to their high mobility, strong off-road capability, and flexible modification, and are especially suitable for complex terrains and narrow areas that are difficult for traditional large fire trucks to reach. The foton fire pickup is equipped with an aluminum alloy rear ladder (removable), with the pump room located at the rear of the vehicle.The tank is steel plate welded and made of high-quality aluminum alloy plate, with a water capacity of 1.5 cubic meters.The vehicle is equipped with a CB10/30 fire pump and a PS8/30W fire water monitor. FOTON 1500L Fire Pickup Rapid intervention vehicle technical drawing ▶Truck Model : FOTON 4x4 RIV rescue pickup ▶Speficiation : 1500 L water ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location FOTON 4x4 RIV pickup 1500 liters, 190 Hp engine Fire rescue department FOTON Rescue fire pickup CAD drawing FOTON Rescue fire pickup CAD drawing Foton RIV side view Foton fire pickup side view Foton fire engine rear view Item Specification Vehicle Model CS5040GXFSG15/B6B Overall Dimensions 5080 × 1940 × 2640 mm Maximum Total Mass 4130 kg Liquid Capacity 150 L (Water) Maximum Speed 135 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 30 L/s @ 0.8 MPa Range of Fire Monitor ≥ 60 m (Water) Approach Angle / Departure Angle 28° / 23° FOTON RIV equipped fire pickup factory picture FOTON RIV equipped fire pickup factory picture FOTON RIV equipped fire pickup factory picture FOTON Fire pickup on board equipment: Category No. Name Specification Qty Unit Remarks Fire Extinguishing Equipment 1 Suction Hose DN100 8 m Threaded type 2 Strainer FLF100 1 pc Threaded type 3 Water Divider FII80/65×2-1.6 1 pc Instantaneous coupling 4 Water Manifold JII100/65×2-1.6 1 pc Internal thread to instantaneous coupling 5 Fire Hose 13-65-20 6 roll Normal pressure; instantaneous coupling 6 Fire Hose 13-80-20 2 roll Normal pressure; instantaneous coupling 7 Fire Hose 13-65-5 1 roll Instantaneous coupling (for external water filling) 8 Reducing Adapter KJ65/80 1 pc Instantaneous coupling 9 Hose Cloth - 4 pcs - 10 Hose Bridge - 2 pair - 11 Hose Hook - 4 pcs - 12 Above-ground Fire Hydrant Wrench - 1 pc - 13 Underground Fire Hydrant Wrench - 1 pc - 14 Suction Hose Wrench 100 2 pcs - 15 Straight Stream Shut-off Nozzle QZG3.5/7.5; 65 1 pc Instantaneous coupling 16 Straight Stream & Spray Nozzle QLD6.0/6.5I; 65 1 pc Instantaneous coupling Forcible Entry & Rescue Tools 1 Fire Extinguisher 3kg / ABC 1 unit - ...

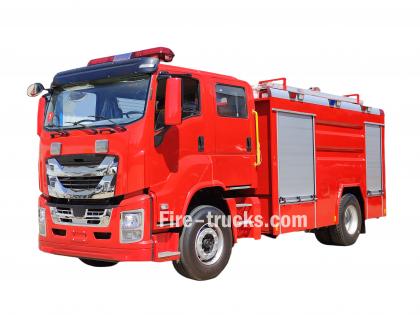

CS trucks as the most professional Water foam powder firefighting vehicle manufacturer in China, all our Dry powder and foam combined fire trucks are particularly suitable for extinguishing fires involving flammable gases, flammable liquids, organic solvents, electrical equipment, and general materials. They are widely used in high-risk locations such as petrochemical enterprises, oil depots, airports, ports, and urban special service fire stations. This Isuzu Water foam powder firefighting vehicle technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department. Upon on different kinds of commands, customer can require wide range of wheelbase ( 3900 mm, 4500mm, 5000mm) and engine horse power ( 240 Hp, 300 Hp) ▶Truck Model : Isuzu FVR/GIGA ▶Speficiation : 3000 L water + 1000 L foam + 1000L dry powder ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location Isuzu 4x2 foam powder fire truck 5000 liters, 240 Hp engine Fire rescue department 2026 NEW Water foam powder firefighting vehicle drawing share 2026 NEW Water foam powder firefighting vehicle drawing share 2026 dry powder firefighting vehicle dry powder testing 2026 NEW Water foam powder firefighting vehicle water jetting testing Design Section Specific design content 1. Design Overview 1. Applicable scenarios: High-risk locations such as petrochemical enterprises, large oil depots, and airports. 2. Functional Features: Integrates dry powder and foam fire extinguishing technologies, suitable for extinguishing fires involving flammable liquids, combustible gases, electrical equipment, and general fires; prevents reignition and provides rapid fire control. 3. Design Standards: Complies with national standards such as GB 7956.4-2019 and GB 7956.2-2014. 2. Vehicle Chassis Design 1. Powertrain Configuration: 6×4 internationally renowned brand chassis, V6 turbocharged diesel engine, power ≥350KW, China VI emission standard, power-to-weight ratio ≥10Kw/t, speed ≥100km/h 2. Basic configuration: ABS+ASR intelligent braking, full- power PTO , front and rear tow hooks, and metal parts resistant to seawater corrosion. 3. Cabin: Flat-front, four-door, double-row seating, accommodating 6 people; equipped with a panoramic recorder, reversing camera, and in-car radio; adjustable seats with air respirator brackets for safety and convenience. 3.1. Upper Structure System Design – Tank System 1. Volumetric structure: Internal compartmentalized design, total volume ≥12m³ (water tank ≥6m³, foam tank ≥3m³, dry powder tank ≥3m³) 2. Material and manufacturing process: 304 stainless steel, bottom plate ≥5mm, side plate ≥4mm; internal anti-sloshing baffle, m...
Beiben Fire Truck based on type II Beiben 2638 model 6*4 Left Hand Drive chassis, body capacity could up to 12,000Liters, including 10,000Liters water tanker and 2,000Liters foam tank, Beiben 2638 fire rescue truck equipped with XIONGZHEN CB10/60 fire pump and PL8/48 fire monitor, very convenient for daily use. Mainly used for firefighting project in any areas of need. The vehicle designed to fully rely on the advantages of the original of Beiben brand truck chassis, fully consider the product's convenience and reliability, also the newly designed chassis. The body material is international standard carbon steel with anti-corrosion painting and stainless steel, which can effective to avoid rusting and service for long life. The Beiben 6x4 Fire Truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, dry powder tanker and nitrogen system, matched with pipeline hose reel, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.
Isuzu 700P foam fire fighting is emergency quick action fire rescue trucks. It has great advantage on japan isuzu 4x2 and 4x4 drive truck chassis, in terms of dacades of experience on this classic rigid truck chassis, Isuzu 700P water foam truck has become the first choice of many fire departments. This Isuzu ELF fire rescue truck technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department. Upon on different kinds of commands, customer can require wide range of wheelbase ( 3360 mm 3815 mm, 4715 mm) and engine horse power ( 190 Hp, 205 Hp) ▶Truck Model : Isuzu 700P/ELF ▶Speficiation : 2000 L water + 500 L foam ▶Application Area : Fire resuce department / Municipal fire bureau Truck Item Speficiation Project Location Isuzu 4x2 foam fire truck 2500 liters, 190 Hp engine Fire rescue department 3 options for Isuzu ELF 700P fire rescue trucks

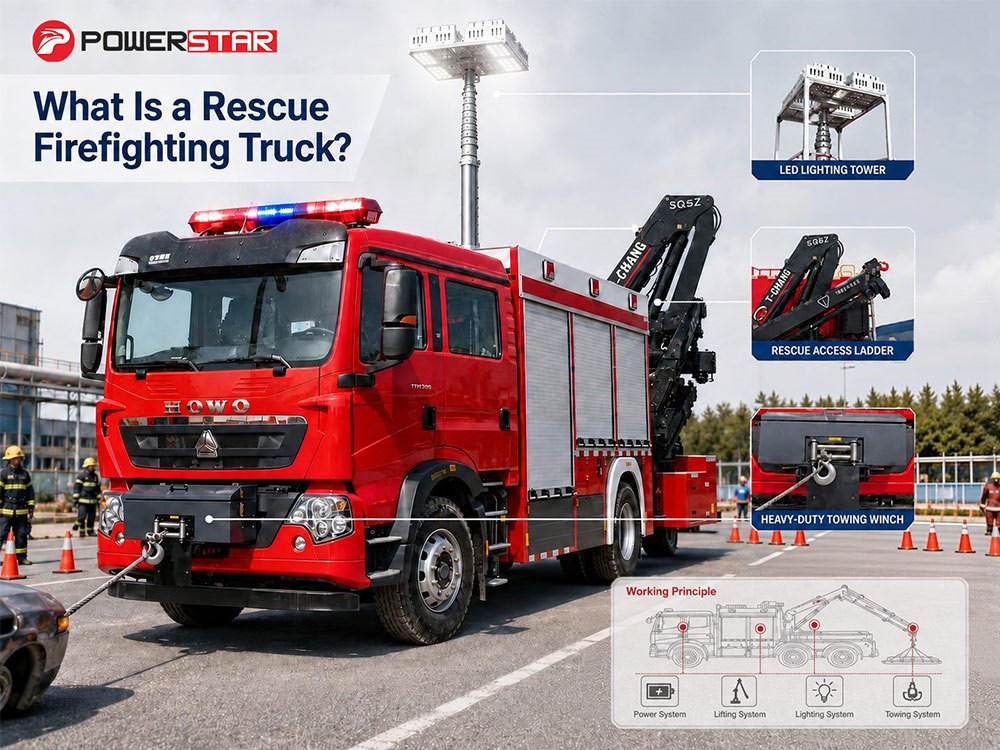

IL Autopompa di soccorso e soccorso di emergenza HOWO con gru è un camion dei pompieri multifunzionale che integra capacità di demolizione, traino, sollevamento e illuminazione, specificamente progettato per scene di catastrofe complesse. La sua configurazione principale include una gru con braccio pieghevole da 5 tonnellate, un verricello idraulico da 3 tonnellate, un proiettore da 500 W e un gruppo elettrogeno, che gli consentono di svolgere compiti di sollevamento, traino e illuminazione. È adatto per interventi in caso di calamità naturali e incidenti stradali, per interventi di demolizione, soccorso e produzione di energia. Il suo design modulare consente rapide modifiche alla configurazione dell'attrezzatura per adattarsi alle diverse esigenze di soccorso. ⇒ Scarica il PDF del disegno : Disegno tecnico della gru montata su camion antincendio HOWO Rescue Vista anteriore sinistra del disegno tecnico della gru montata su camion antincendio HOWO Rescue Veicolo antincendio con gru di soccorso di emergenza HOWO Specifiche principali Cabina CABINA DOPPIA, 6 PERSONE AMMESSE Gru Modello SQ5ZK2 Capacità di sollevamento 5000 kg Quantità braccio 3 Verricello Quantità 1 Capacità 3000 kg Faro di ricerca Angolo di rotazione 360 ° Altezza di lavoro 5m, sollevamento automatico Buble 500w*4 pezzi Velocità massima del vento

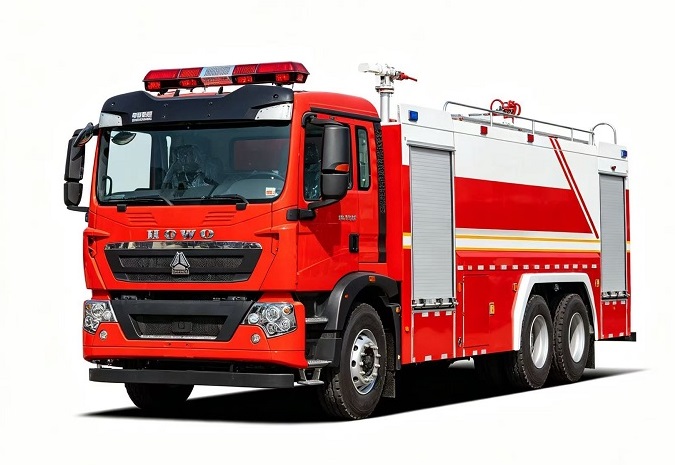

Il cliente Africa Mauritania ha acquistato in totale 4 unità Autopompa antincendio Sinotruk Howo Da POWERSTAR TRUCKS e utilizzato nella capitale Nouakchott. Il camion dei pompieri, noto anche come autopompa o autopompa, è un veicolo progettato e prodotto per soddisfare le esigenze di molteplici progetti di spegnimento incendi e soccorso a livello internazionale. Doppia fila di cabine personalizzate per il trasporto dei vigili del fuoco, varie attrezzature e strumenti antincendio per la lotta antincendio, il soccorso antincendio, ecc. Per garantire che i camion dei pompieri HOWO lavorino in modo più efficiente, abbiamo personalizzato il camion per equipaggiarlo con scale in lega di alluminio, schiumogeno e agente antincendio a polvere secca e cisterne di stoccaggio, pompa antincendio efficiente modello CB10/60 abbinata al monitor antincendio PL8/48 e portata di spruzzo di oltre 70 m, naspi antincendio con pistola per lo spegnimento di incendi a lunga distanza, autorespiratore con maschera, indumenti protettivi, strumenti di soccorso, kit di pronto soccorso, ecc. Tutti i servizi per i camion dei pompieri HOWO garantiscono un lavoro efficiente e affidabile. Per garantire ai clienti della Mauritania un utilizzo più semplice ed efficiente dei camion antincendio HOWO, tutti i camion sono dotati di un catalogo completo in lingua inglese per l'assistenza, che comprende il manuale utente per la guida al funzionamento, il manuale del camion e il manuale dei pezzi di ricambio per l'uso e la manutenzione. Autopompa antincendio SINOTRUK HOWO da 14.000 litri Fabbrica POWERSTAR è un produttore professionale nel settore dei camion, garantiamo che tutti i prodotti sono nuovi di zecca e di alta qualità. » Ⅰ. Vantaggi del camion dei pompieri HOWO: ★ Potente motore diesel WEICHAI da 247KW / 336HP, 100.000 Km senza problemi. ★ Cabina classica SINOTRUK HOWO HW76, design europeo ★ Pompa antincendio CB10/60 montata, portata 60 L/s, super affidabile ★ Cannone antincendio ad acqua PL8/48 montato in alto, servizio durevole ★ Bombola di polvere secca da 500 litri con azoto, con valvole di controllo dell'aria ★ Sistema di controllo integrato per schiuma e polvere, con pannello posteriore » Ⅱ . Disegno del camion dei pompieri Howo Rescue: [if gte mso 9]> Normale 0 7,8 punti 0 2 false false false EN-US ZH-CN AR-SA /* Style Definitions */ table.MsoNormalTable {mso-style-name:普通表格; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Calibri",sans-serif; mso-bidi-font-family:"Times New Roman";} To guarantee Mauritania Nouakchott clients purchased satisfy HOWO 6x4 Water & Foam & Powder Fire Truck, so we POWERSTAR Engineer Department do design the truck firstly, then start for production. Howo fire truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, English ver...
680+Progetti completati
+86 188 0866 8888
Come xiongzhen professionista produttore di pompe antincendio in Cina, Camion Powerstar possiede il proprio marchio "Xiongzhen" e la serie di prodotti "Xiongzhen", tra cui pompe antincendio a bassa pressione, pompe antincendio a media-bassa pressione e pompe antincendio montate su veicoli ad alta-bassa pressione, oltre ad attrezzature di supporto come monitor antincendio e dosatori di schiuma. Le ...
Per saperne di piùIl PF5-15 monitor fisso di polvere secca Utilizza polvere secca come mezzo e si basa su una base fissa per una spruzzatura stabile. È adatto per aree chimiche e magazzini e può coprire rapidamente la superficie in fiamme nelle fasi iniziali di un incendio, migliorando l'efficienza di estinzione. IL Monitor fisso per polvere secca PF5-15 ha una struttura robusta, è facile da usare e può essere coll...
Per saperne di piùLa pompa antincendio a schiuma CB10/140 è un sistema di alimentazione idrica antincendio comunemente utilizzato, montato su veicoli o fisso, con una pressione nominale di 1,0 MPa e una portata nominale di 140 l/s, che soddisfa le principali esigenze di alimentazione idrica dei sistemi antincendio. Il corpo della pompa e la girante sono realizzati con materiali di alta qualità e resistenti all'usur...
Per saperne di piùCamion dei pompieri Isuzu 6HK1-TC , anche chiamato Veicolo antincendio di soccorso Isuzu , Diagnosi e soluzioni dei codici di errore del motore. Il motore Isuzu 6HK1-TC utilizza l'avanzato sistema di controllo elettronico della pompa di iniezione TICS, mentre la centralina ECU (Engine Control Unit) è dotata di autodiagnosi. Quando il sistema rileva un guasto, la spia "CHECK ENGINE" si accende e il...
