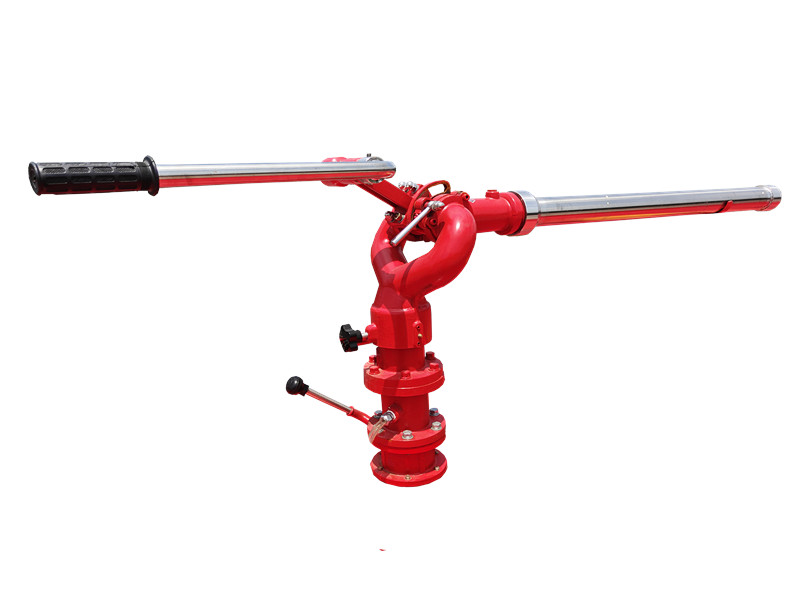

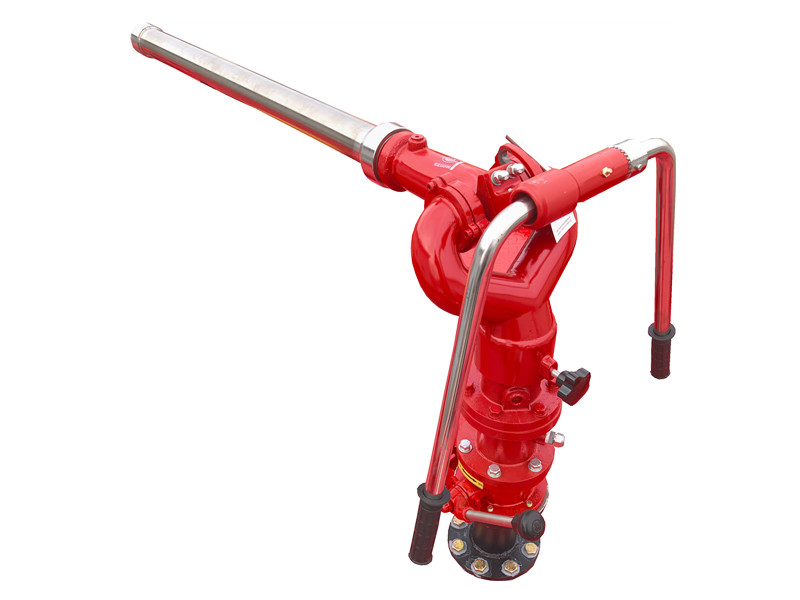

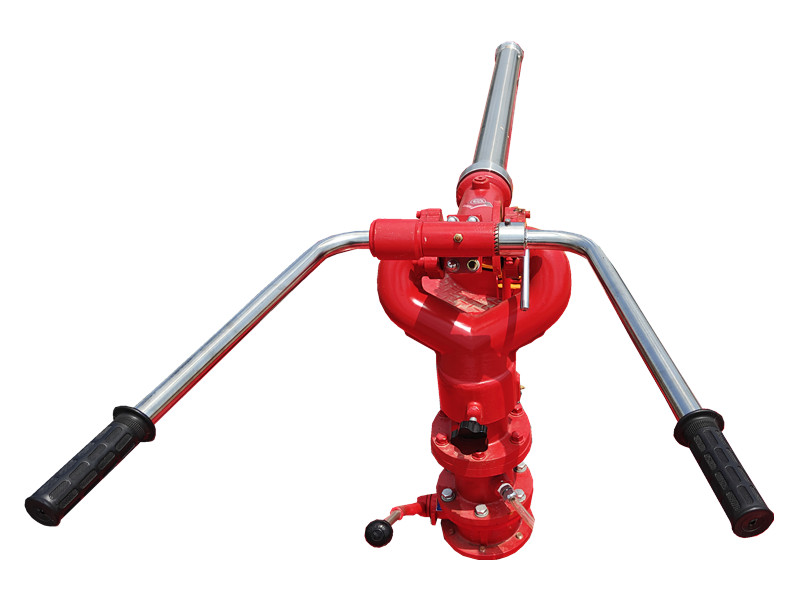

China PF5-15 fixed dry powder monitor

The PF5-15 fixed dry powder monitor uses dry powder as the medium and relies on a fixed base for stable spraying. It is suitable for chemical and warehouse areas, and can quickly cover the burning surface in the early stages of a fire, improving extinguishing efficiency.

The PF5-15 fixed dry powder monitor has a robust structure, is easy to operate, and can be linked with an automatic control system for remote activation and precise spraying.

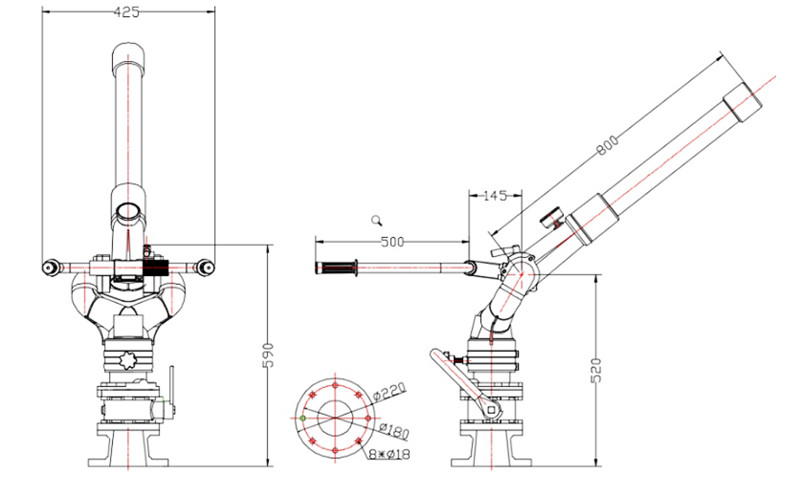

» Ⅰ. PF5-15 fixed dry powder monitor structure:

Features of the PF5-15 fixed dry powder monitor:

● Fully functional;

● Simple and novel structure;

● Stable performance and easy maintenance;

● Low inlet pressure;

● Equipped with an automatic drain valve with horizontal and vertical locking functions;

● Material: Precision cast aluminum alloy;

● Cannon head: Aluminum alloy.

» Ⅱ. Foam Cannon PL24 specifications:

Model	Flow （kg/s）	Range（m）	Rated working pressure（Mpa）	Pitch rotation （°）	Horizontal rotation （°）	L×W×H （mm）	Weight （Kg）
PF5-15/40	40	≥42	0.80	-45～+70	0～360	980x340x550	28.5







» Ⅲ.Product Applications:

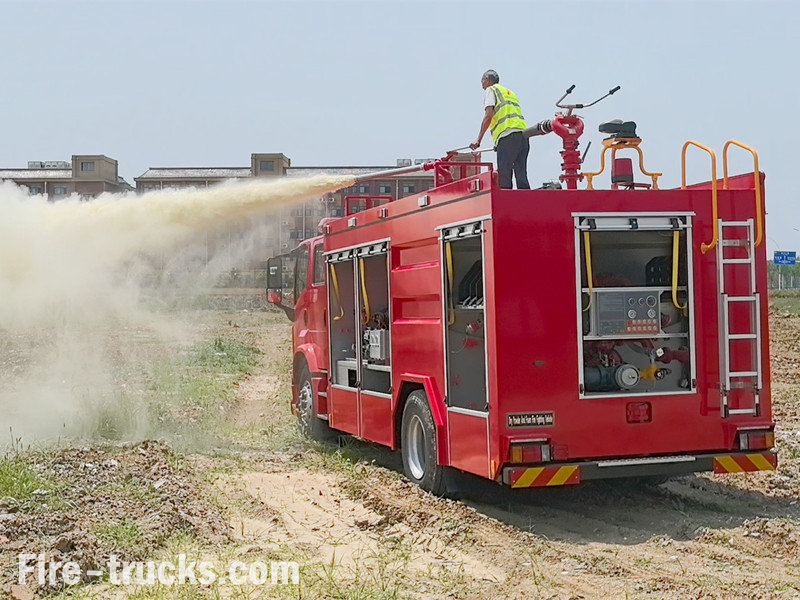

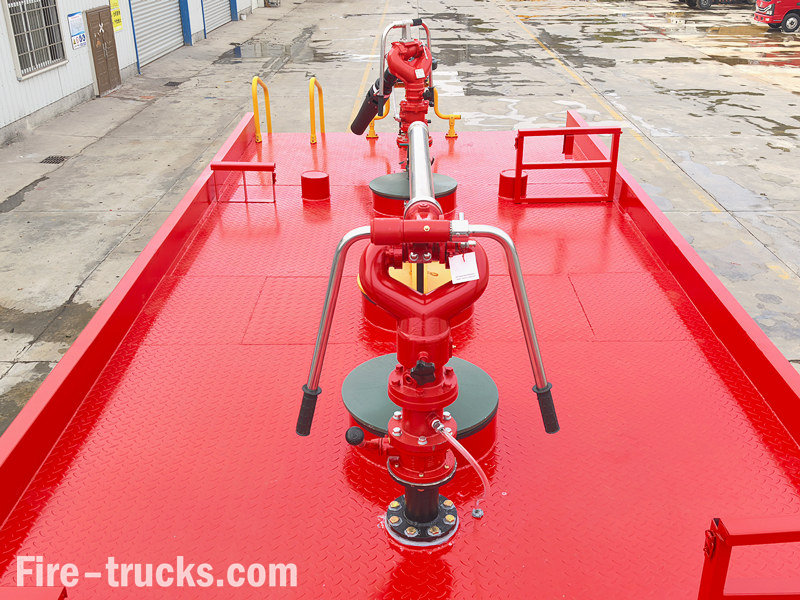

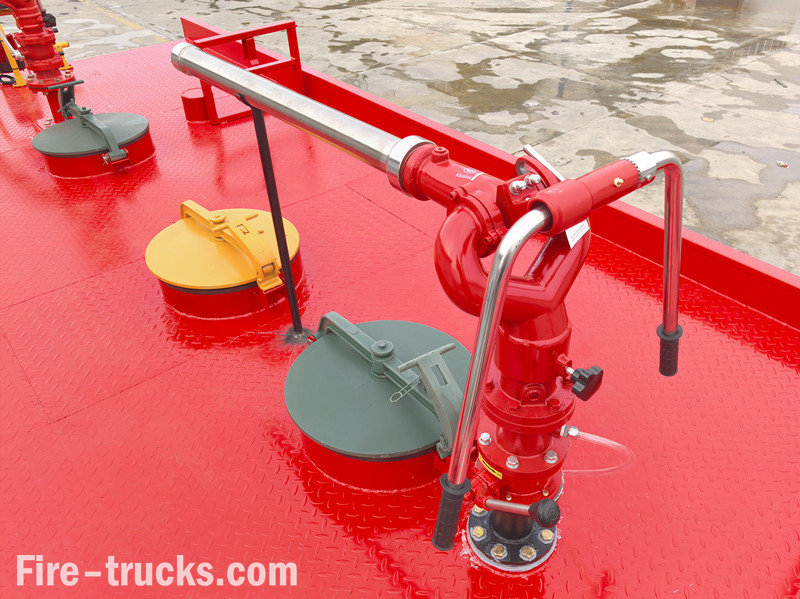

Fire truck with PF5-15 fixed dry powder monitor	PF5-15 fixed dry powder monitor testing



The PF5-15 fixed dry powder monitor has a long spray distance and wide coverage, and can quickly form a dry powder fire extinguishing barrier. It is suitable for fixed locations such as chemical plants, oil depots, and storage areas, providing continuous and stable fire extinguishing capabilities for large areas.
