What Does Fire Truck Spray Height Depend On?

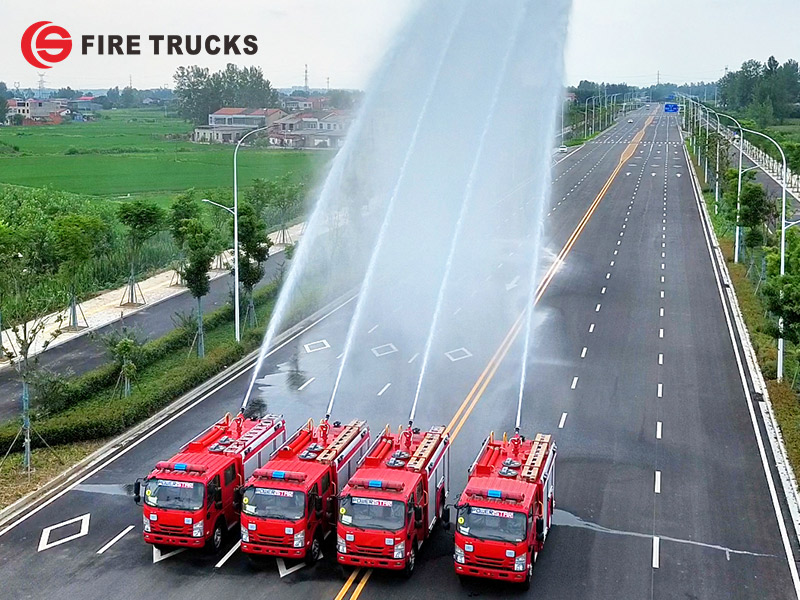

The fire truck pump and spray system is the core of firefighting operations. It acts as the "powerful arm" of the fire truck. By converting engine power into pressure (ranging from 0.8 to 1.4 MPa), it delivers extinguishing agents to heights of up to 85 meters — whether it is a high-rise building fire in a dense city center or a petrochemical storage tank fire in an industrial zone, the fire truck relies on this system to achieve effective fire suppression.

What factors affect a fire truck's spray height, and how do pump pressure, flow rate, and fire monitor work together? These are the focus of many customers. Let's learn about it today.

» I. Three Key Components That Determine Spray Height

» II. Core Factors That Determine Spray Height

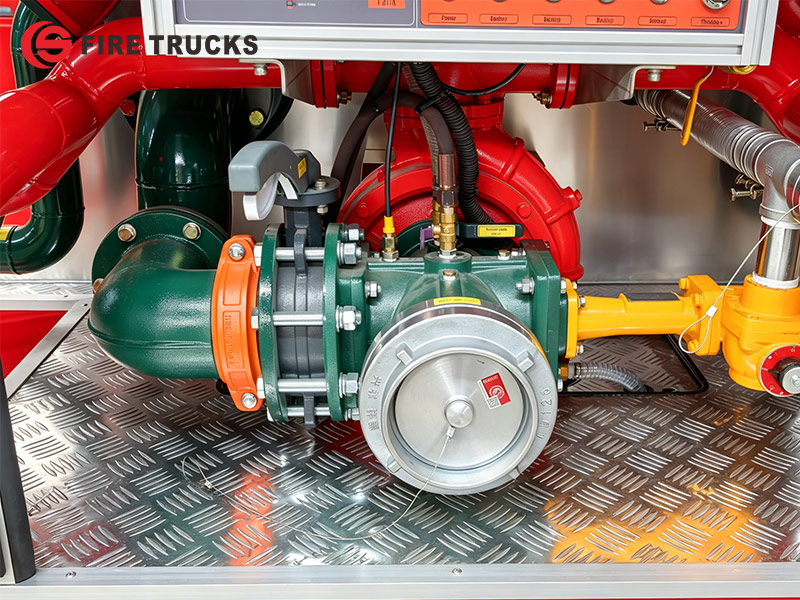

1.1. Pump Pressure

Fire truck pump pressure is the force generated by the fire pump to push the extinguishing agent through hoses and discharge it from nozzles or monitors. It is the primary driver of both flow rate and spray distance. Higher pressure produces higher velocity at the monitor outlet, directly increasing spray height. The relationship is governed by the formula H ≈ P/(ρg), where each 0.1 MPa increase adds approximately 10 meters of theoretical height — but real-world losses reduce this.

In practical firefighting operations, the following ranges apply:

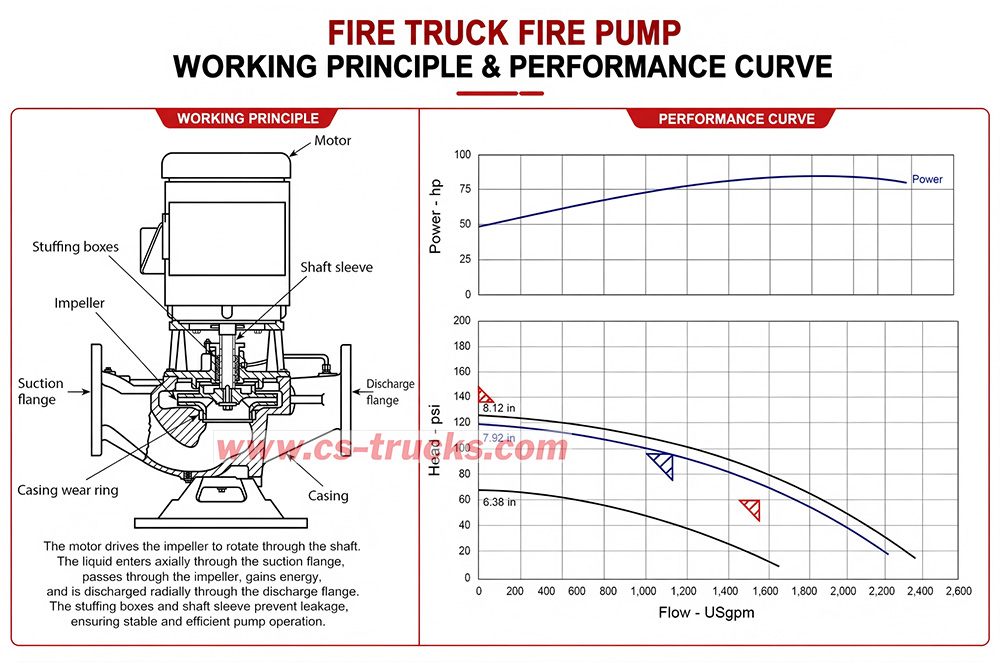

1.2. How the fire pump works:

The pump is typically a centrifugal pump driven by the truck's engine through a power take-off (PTO). As the impeller spins, it draws the extinguishing agent in and throws it outward by centrifugal force, creating pressure that propels it through the discharge system.

Rated Pressure vs. Operating Pressure:

2. Flow Rate (L/min)

Adequate flow is as important as pressure. High pressure with low flow cannot deliver enough extinguishing agent to suppress a fire. The pump system must maintain both pressure and flow simultaneously.

Flow vs. spray height:

• 2,000 L/min → effective for municipal fires

• 3,000 L/min → suitable for industrial parks

• 4,000 L/min → required for petrochemical facilities

• 5,000+ L/min → necessary for airport crash rescue

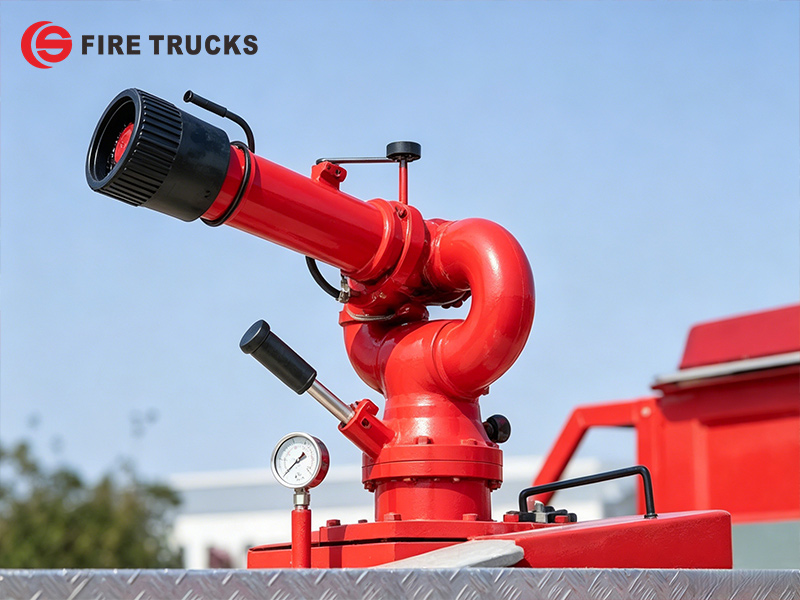

3. Fire Monitor Design

The monitor's internal flow path, outlet diameter, and type directly affect spray height.

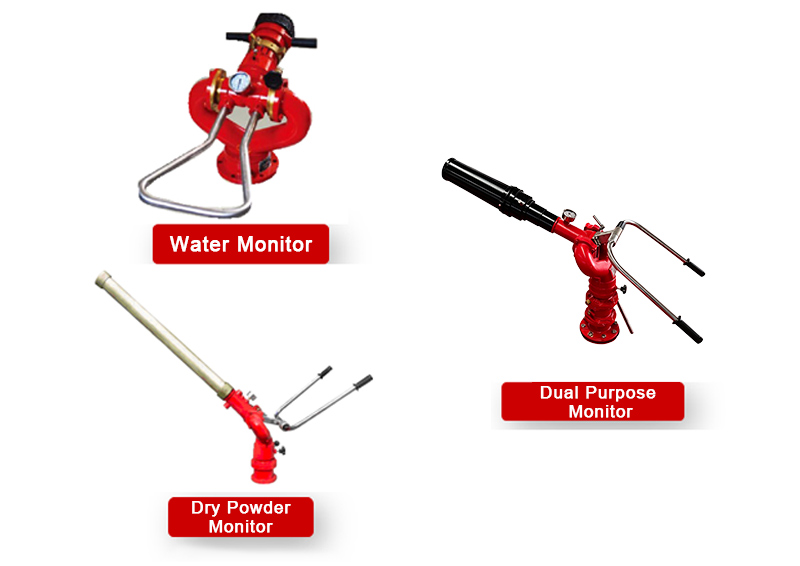

Monitor type comparison:

• Water monitor: Highest height, straight flow path

• Foam monitor: Slightly lower (5–10% less) due to air intake turbulence

• Dual-purpose monitor: Moderate (compromise between water and foam)

4. Extinguishing Agent Type

Water and foam have different densities. Foam solution is approximately 5-10% denser than water, which slightly reduces spray height at the same pressure. This should be considered when selecting equipment for foam operations.

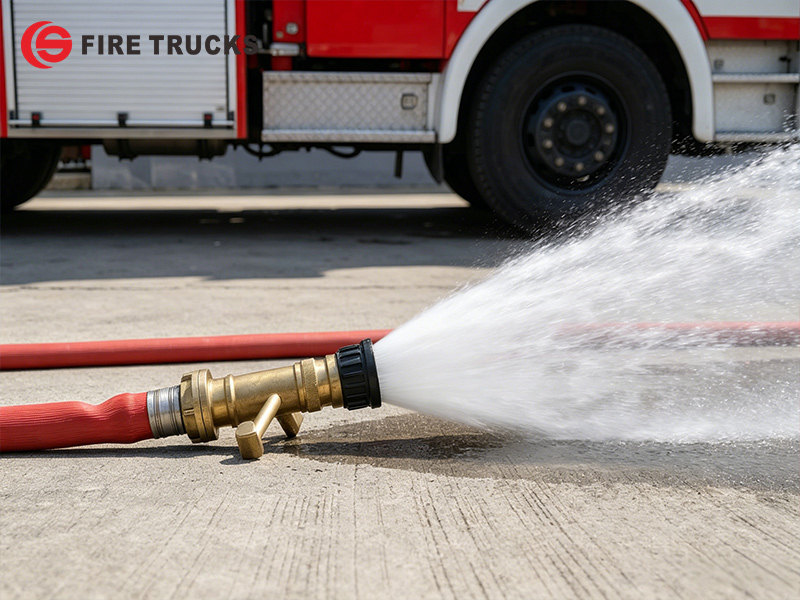

5. Friction Loss

As the extinguishing agent flows through hoses and piping, friction reduces pressure at the monitor. Longer hoses and smaller diameters increase losses.

Friction loss factors:

• Hose length: Longer = more loss

• Hose diameter: Smaller = more loss

• Fittings and bends: Each adds resistance

» III. FIRE TRUCKS Selection Guide

To provide customers with the best firefighting solutions, FIRE TRUCKS selects the most suitable system based on application

requirements:

1. Spray Height Comparison at Different Pressures

2. Monitor Selection Guide

3. Key Factors Affecting Spray Height

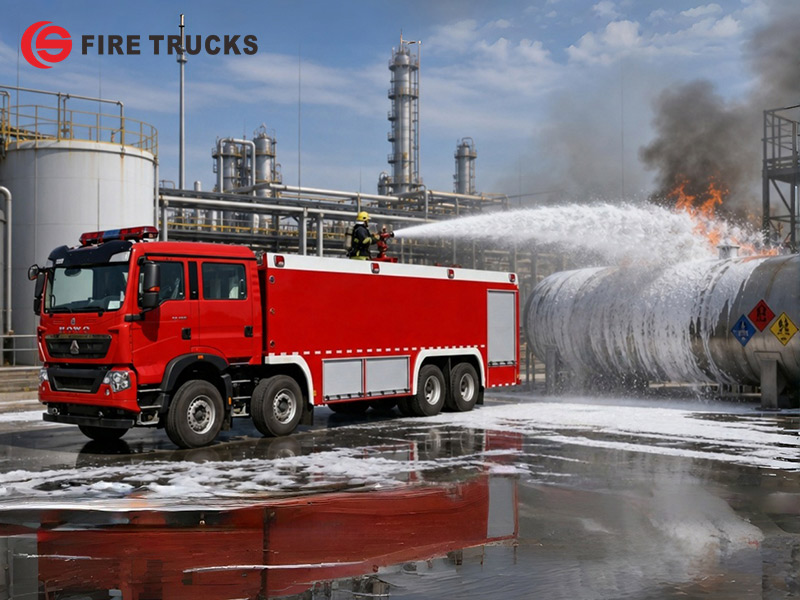

» IV. Real-World Case Study: Petrochemical Storage Tank Fire

Case Background:

A large-scale fire broke out at a petrochemical storage facility in an industrial zone. The fire involved a 50-meter diameter floating roof tank containing crude oil. Ground-based hoses could not reach the fire due to the tank's height and the radiant heat zone.

Fire Truck Configuration:

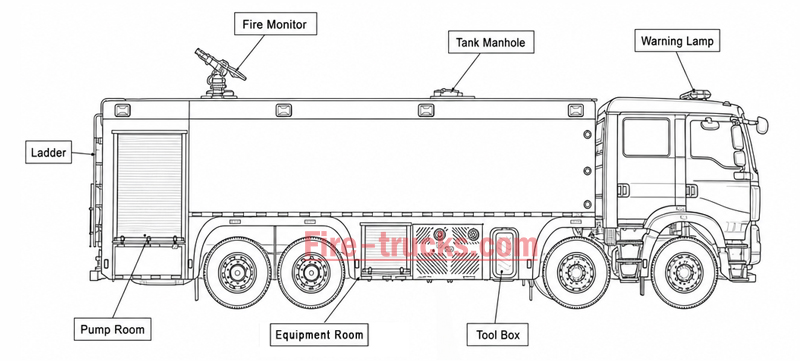

• 8×4 foam fire truck

• Pump system rated at 1.2 MPa / 4,000 L/min

• PL48 foam/water dual-purpose monitor

Actual Performance:

• Measured spray height: approximately 62 meters

• Effective coverage: tank area of approximately 80 meters in diameter

• Foam blanket successfully suppressed the fire within 8 minutes

Key Lesson:

For large storage tank fires, pressures below 1.0 MPa are often insufficient to deliver foam over the required distance. The combination of adequate pressure, high flow rate, and a properly selected monitor is essential for effective fire suppression.

» V. Common Misconceptions

Misconception 1: Higher pressure is always better

Reality: Higher pressure increases energy consumption, equipment cost, and maintenance complexity. Excessive pressure can also damage hoses and nozzles. The goal is adequate pressure for the job, not maximum pressure.

Misconception 2: Spray height equals firefighting capability

Reality: Flow rate is often more critical than height. A high stream at low flow may not deliver enough extinguishing agent to suppress a fire. The combined value of pressure and flow is what matters.

Misconception 3: Friction loss can be ignored

Reality: Over long hose lays, friction loss can consume 20-30% of the pump's pressure. Proper calculation of friction loss is essential to ensure adequate pressure at the nozzle.

Misconception 4: The monitor makes no difference

Reality: A high-pressure pump connected to a poorly designed monitor will not achieve maximum spray height. The monitor's internal flow path, outlet diameter, and type all affect final performance. Matching the monitor to the pump is as important as selecting the pump itself.

» VI. Frequently Asked Questions

Q: What is the most common pump pressure on fire trucks?

A: Most fire trucks are designed with pump pressures ranging from 0.8 to 1.2 MPa, with 1.0 MPa being the most common standard.

Q: How high can a 1.0 MPa pump spray?

A: Under standard conditions, a 1.0 MPa pump can achieve spray heights of 45 to 55 meters using a medium to large monitor.

Q: Why do high-rise fires require higher pump pressure?

A: High-rise fires require additional pressure to overcome elevation gain (1.0 m of height requires approximately 0.01 MPa) and friction loss in vertical hose lines.

Q: Does a foam monitor achieve the same spray height as a water monitor?

A: Typically, foam monitors achieve slightly lower heights (5-10% less) than water monitors at the same pressure due to the air intake design that creates turbulence and the higher density of foam solution.

Q: What is the most important factor for spray height?

A: No single factor determines spray height. Pump pressure, flow rate, monitor design, nozzle type, and environmental conditions all work together. A well-balanced system is more effective than one that excels in only one area.

Q: Does the monitor itself affect spray height?

A: Yes. The monitor's internal flow path, outlet diameter, and type (water, foam, or dual-purpose) all directly affect spray height. A well-designed monitor maximizes the energy delivered by the pump.

» VII. Key Takeaways:

• Spray height depends on multiple factors — pump pressure, flow rate, monitor design, agent type, friction loss, elevation, and wind conditions

• 1.0–1.2 MPa is the mainstream pressure range for most industrial firefighting applications

• Monitor selection matters — a high-pressure pump with a poorly designed monitor will not achieve maximum spray height

• Flow rate is as important as pressure — high pressure with low flow may not deliver enough extinguishing agent to suppress a fire

• Different agents have different spray characteristics — foam is denser and achieves slightly lower height

• Petrochemical and airport projects typically require 1.2 MPa or higher

• For international projects, prioritize fire trucks that comply with recognized standards such as NFPA, EN, or GB

» VIII. Conclusion

Fire truck spray height is not determined by a single factor. It depends on the combined effect of pump pressure, flow rate, monitor design, agent type, friction loss, elevation gain, and wind conditions.
