Il camion dei pompieri FAW 4x4 All-Terrain è un veicolo antincendio professionale progettato per ambienti estremi. Costruito sul telaio FAW 4x4 All-Terrain, è dotato di un motore diesel da 350 cavalli e di un cambio automatico, con sistema di trazione integrale permanente. Può operare a temperature comprese tra -40°C e 45°C e ad altitudini fino a 5.000 metri. Il veicolo è dotato di un serbatoio d'acqua in acciaio inox da 2.000 litri, una pompa antincendio CB10/30 con una portata di 30 l/s e un monitor antincendio PS8/20W con una gittata di 45 metri. Inoltre, include un verricello anteriore da 8 tonnellate e un sistema automatico di gonfiaggio e sgonfiaggio degli pneumatici, offrendo prestazioni fuoristrada eccezionali e un controllo intelligente. È particolarmente adatto per missioni antincendio e di soccorso in terreni complessi come foreste e montagne.
Modello del camion:
PT5130GXFSGCACapacità di lavoro:
2000 litersStruttura della cisterna:
Stainless steel water tankPasso:
4300 mmTrazione assale:
4×4Potenza del motore:
350HPModello del motore:
CA6DL6-35E68Pompa antincendio:
CB10/30Monitor antincendio:
PS8/20WNote:
PP tank is optional
[se gte mso 9]>
The FAW 4 × 4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments, capable of performing firefighting and rescue missions in challenging conditions such as mountains, deserts, earthquakes, and floods. The vehicle is modified based on FAW 4 × 4 all-terrain off-road chassis, with overall dimensions of 7,440 × 2,550 × 3,250 mm and a gross weight of 12,900 kg, featuring left-hand drive. Its unique full-time four-wheel drive system, combined with large 395/85R20 14PR off-road tires, grants the vehicle exceptional terrain adaptability, with a maximum gradient of over 60%, a trench-crossing width of 75 cm, a vertical obstacle clearance of 60 cm, and a wading depth of up to 1.5 meters. Notably, this fire truck is equipped with an automatic tire inflation-deflation system that adjusts tire pressure in real-time based on road conditions, significantly improving mobility on complex surfaces like sand and mud.
The FAW 4 × 4 All-Terrain Water Tender is powered by a CA6DL6-35E68 diesel engine, an 8.57-liter powerplant compliant with Euro VI emission standards, delivering a maximum power output of 261 kW (350 hp). The engine utilizes advanced turbocharging technology and a common-rail fuel injection system, ensuring robust performance even in high-altitude, low-oxygen environments. It is paired with a 9-speed automated manual transmission that offers smooth shifting and ease of operation, significantly reducing driver workload in complex terrains.
As a professional firefighting vehicle, the FAW 4 × 4 fire engine is equipped with a comprehensive firefighting system. Its 2,000-liter stainless steel water tank is constructed from high-quality materials and includes a manhole, overflow/pressure relief devices, a liquid level sensor, and a drainage port to ensure safe and reliable water supply. The CB10/30 standard-pressure fire pump has a rated flow of 30L/s, an operating pressure of 1.0 MPa, a suction depth of 7 meters, and a startup time of less than 50 seconds, enabling rapid deployment for firefighting operations. The PS8/20W fire monitor operates at 0.8 MPa, with a water jet range exceeding 45 meters, 360 ° horizontal rotation, and a vertical elevation range of -35 ° to 70 ° , offering flexible operation and wide coverage. This system is particularly suited for long-range, high-altitude firefighting missions and can quickly replenish water from external sources in arid regions to sustain prolonged operations.
The FAW 4 × 4 Off-road Firefighting Truck excels in environmental adaptability. It can operate reliably in extreme temperatures ranging from -40 ° C to 45 ° C, making it ideal for firefighting needs in both frigid and scorching regions. Its high-altitude performance is equally impressive, maintaining stable operation at altitudes above 5,000 meters, making it an optimal firefighting solution for plateau areas.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
[if gte mso 9]>
Specifiche di base del veicolo |
||
Dimensione complessiva |
7440*2550*3250mm |
|
Peso lordo |
12900 kg |
|
Peso a vuoto |
10800 kg |
|
Marca del telaio |
FAW |
|
Tipo di trazione |
4*4, guida a sinistra |
|
Angolo di attacco/partenza |
38 ° /18 ° |
|
Sbalzo anteriore/posteriore |
1100/1590 millimetri |
|
Velocità massima di guida |
100 chilometri all'ora |
|
Specifiche del telaio |
||
Modello del telaio |
CA2130J2K |
|
Taxi |
Doppia fila, 1+1+4 posti |
|
Passo |
4300 millimetri |
|
Carreggiata anteriore/posteriore |
2060/2085 millimetri |
|
Specifiche degli pneumatici |
395/85R20 14PR |
|
Quantità di pneumatici |
4+1 unità |
|
Motore |
Modello del motore |
CA6DL6-35E68 |
Norma sulle emissioni |
Euro 6 |
|
Spostamento |
8570 ml |
|
Produzione |
261 kW |
|
potenza del cavallo |
350 CV |
|
Scatola del cambio |
cambio automatico |
|
Sistema frenante |
Freno ad aria compressa completo, servosterzo, freno a molla, freno di scarico |
|
Carico per asse |
Fronte |
5950 chili |
Posteriore |
6950 chili |
|
Specifiche della parte superiore del corpo |
||
Serbatoio dell'acqua |
Capacità |
2000 litri |
Materiale |
Acciaio inossidabile |
|
Struttura |
1 tombino; 1 dispositivo di sovrapressione/troppo pieno; 1 sensore di livello del liquido; 1 porta di scarico dell'acqua. |
|
Pompa antincendio |
Modello |
CB10/30, pompa a pressione normale |
Portata nominale |
30L/S |
|
Pressione |
1,0 MPa |
|
Profondità di aspirazione |
7 metri |
|
Tempo di innesco |
≤50 secondi |
|
Monitor antincendio |
Modello |
PS8/20W |
Pressione |
0,8 MPa |
|
Allineare |
Acqua ≥45M |
|
Angolo di rotazione |
Orizzontale 360°
|
Caratteristiche del prodotto
Caratteristiche principali dell'autocisterna antincendio FAW 4×4:
1. Resistenza al freddo:
Funziona a temperature da -40°C a 45°C.
2. Capacità ad alta quota:
Funziona ad altitudini superiori ai 5.000 metri.
3. Ampia applicazione:
Progettato per missioni antincendio e di soccorso in foreste, praterie e altri ambienti difficili.
4. Mobilità superiore:
Trazione integrale permanente con sistema automatico di gonfiaggio e sgonfiaggio degli pneumatici per affrontare terreni complessi; profondità massima di guado di 1,5 metri.
5. Funzionamento intelligente:
Sistema antincendio intelligente one-touch con capacità di controllo remoto wireless.

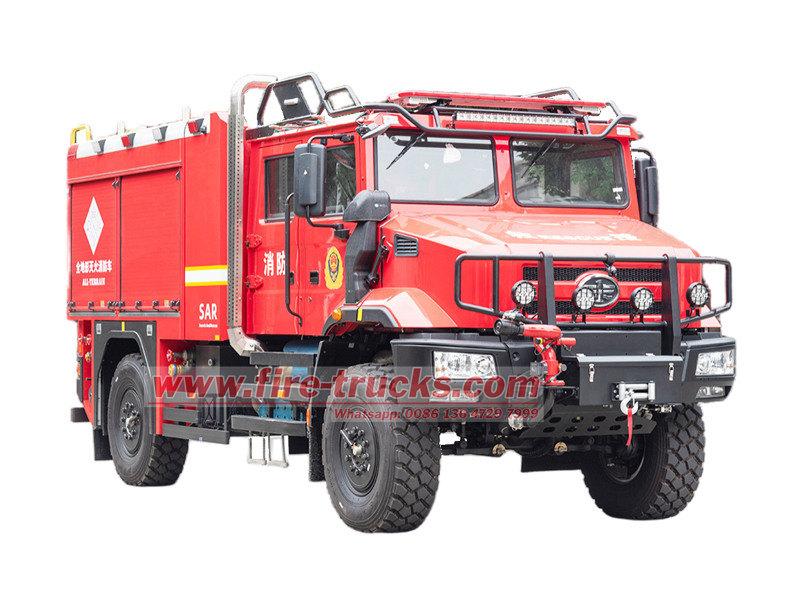

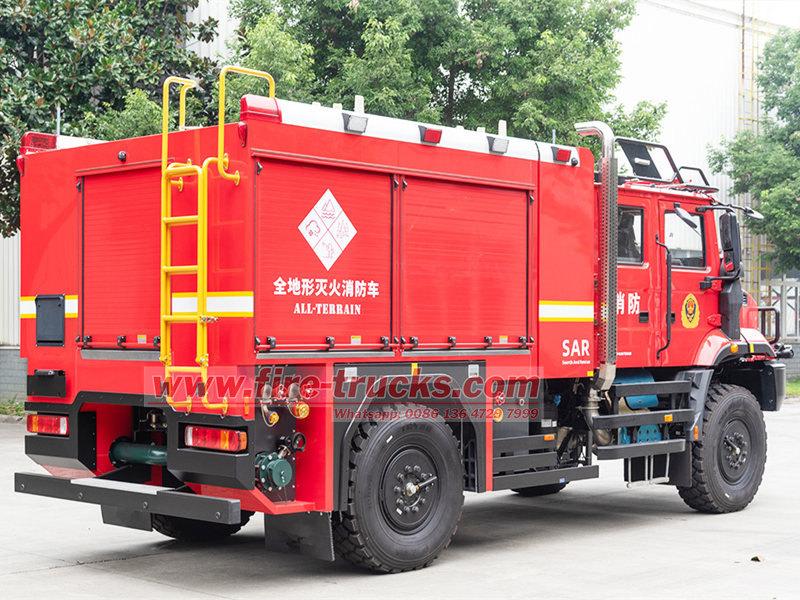

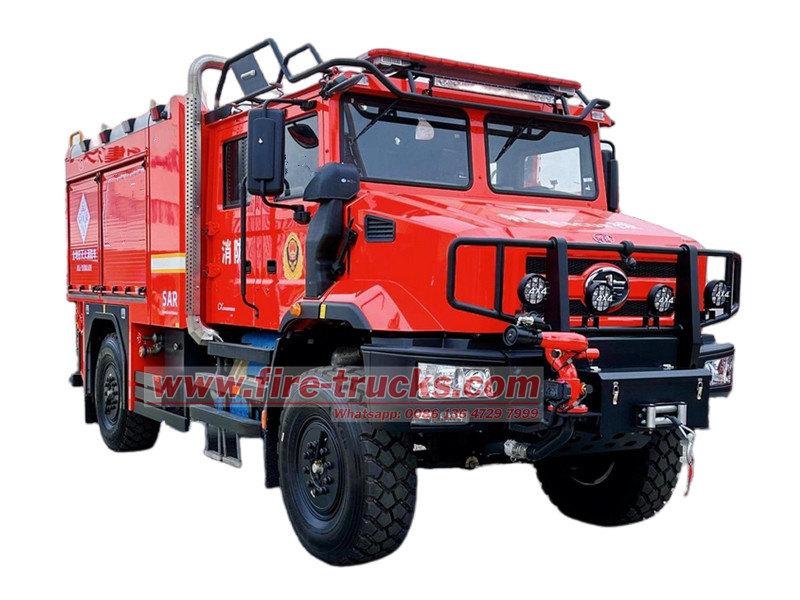

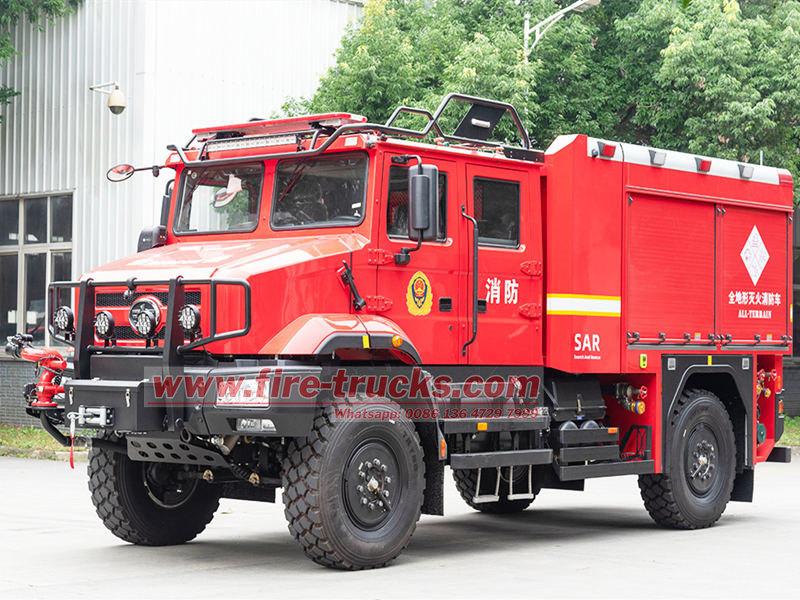

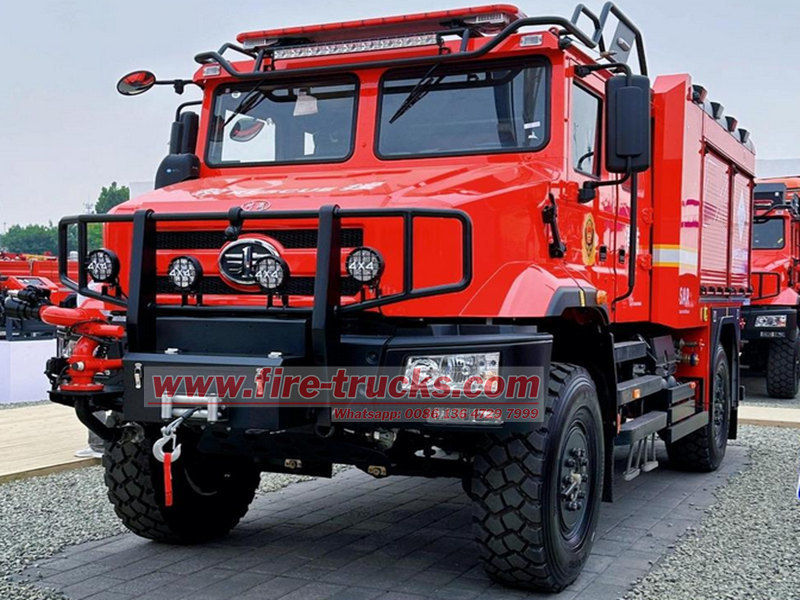

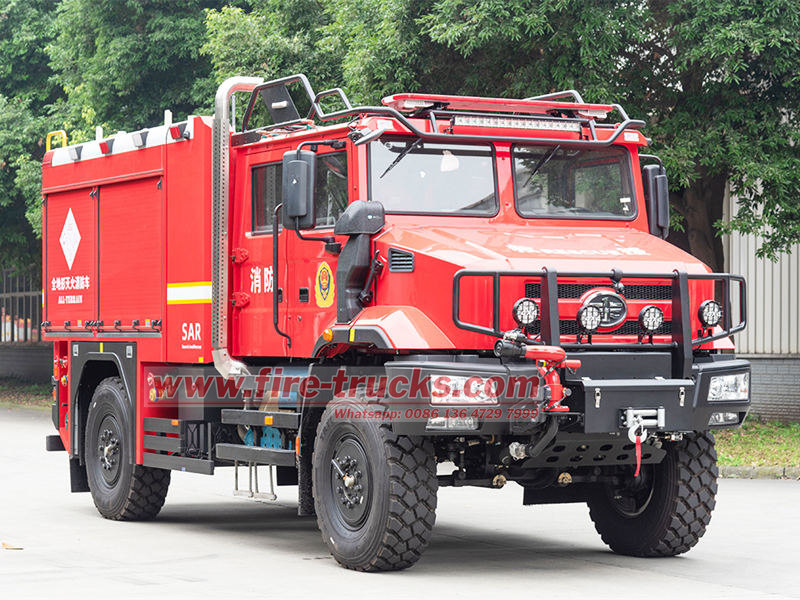

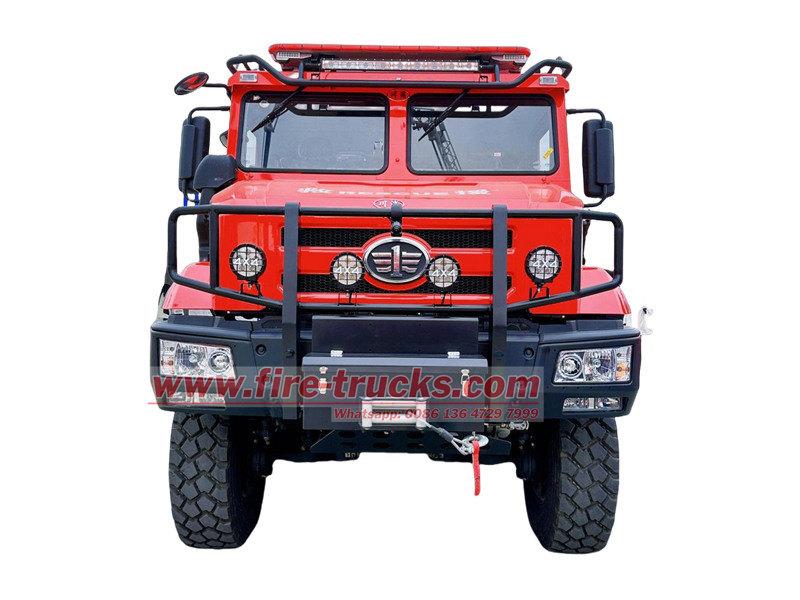

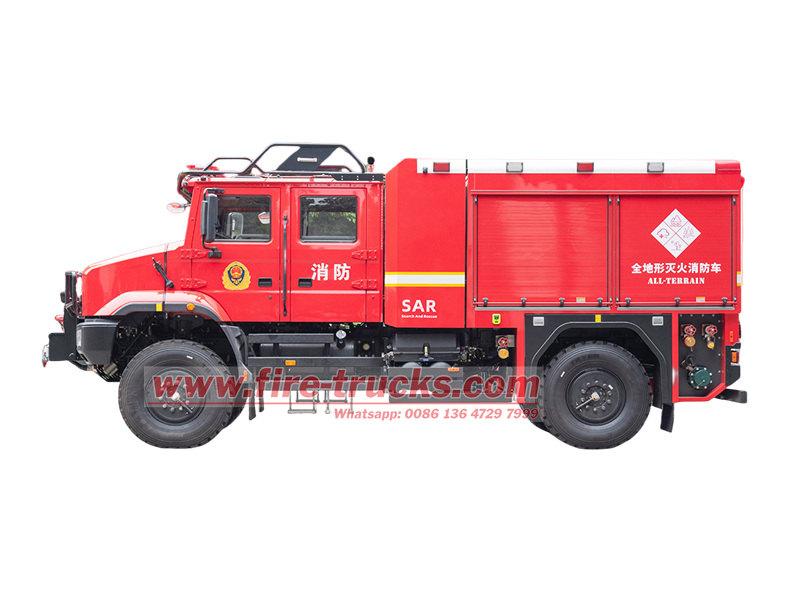

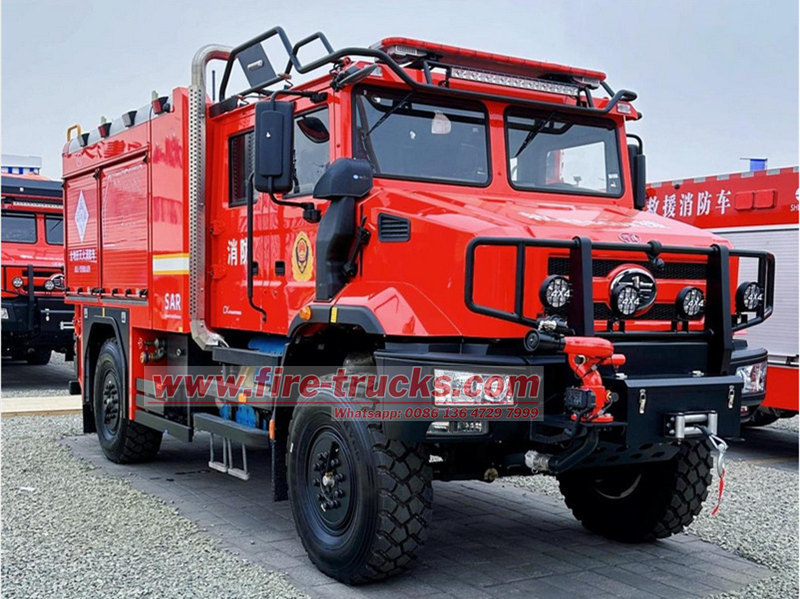

Immagini del prodotto
![]() |
![]() |
|
![]() |
![]() |
