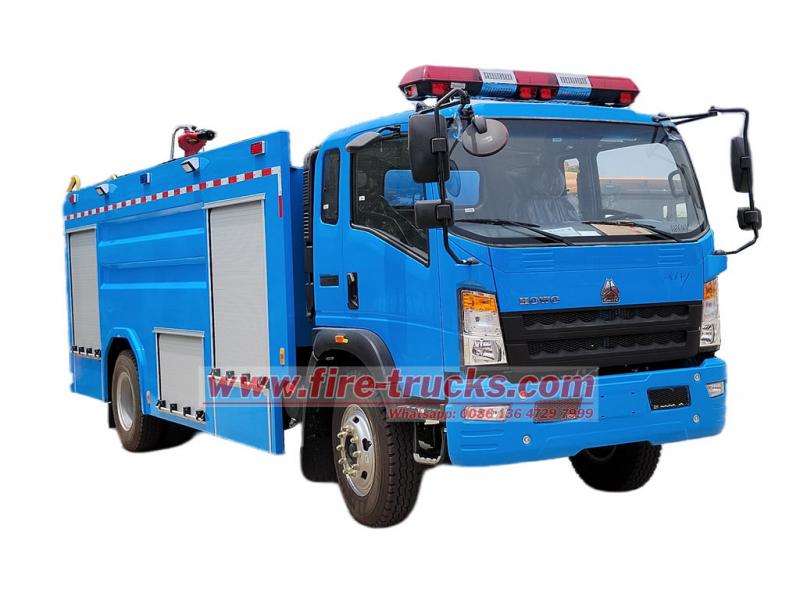

The HOWO Mini Pumper Fire Truck is a compact and agile firefighting unit featuring a 4×2 drive configuration, powered by a 116 HP Yunnei diesel engine with a top speed of 85 km/h. Measuring just 6.2 meters long and 2 meters wide, its maneuverability makes it ideal for narrow urban streets. Equipped with a 2000L rust-proof water tank, a CB10/30 fire pump (30L/s flow rate), and a PS8/30W fire monitor (60m range), it efficiently tackles initial-stage fires. Practical features include a 360° adjustable monitor and dual-side quick-fill ports, making it an optimal lightweight firefighting solution for communities, towns, and industrial zones.
Truck Model:
PT5067GXFSGTanker Structure:
Carbon steelWork capacity :
2000 litersWheelbase:
3360 mmAxle drive:
4×2Engine Power:
116 HPEngine Model:
YN4102QBZLFire Pump:
CB10/30Fire Monitor:
PS8/30WRemark:
Custom blue colorThe HOWO Mini Pumper Fire Truck, designed and manufactured by POWERSTAR, is a compact firefighting vehicle specifically engineered for urban narrow streets, industrial parks, residential areas, and rural firefighting needs. With a 4×2 drive system and a HOWO single-row cab, this fire truck measures only 6.22 meters in length, 2 meters in width, and 2.85 meters in height, featuring a tight turning radius and excellent mobility for rapid deployment in confined spaces.
Powered by a Yunnei YN4102QBZL diesel engine delivering 85 kW (116 HP) and paired with a 6-speed manual transmission, this HOWO fire engine truck achieves a top speed of 85 km/h, ensuring quick response to emergency scenes. Its 6700 kg gross weight ensures stability, while 7.00R16 tires enhance off-road capability. The 2000L carbon steel water tank, treated with anti-corrosion coating, along with the CB10/30 normal-pressure fire pump and PS8/30W fire monitor, forms the core firefighting system of this compact unit.

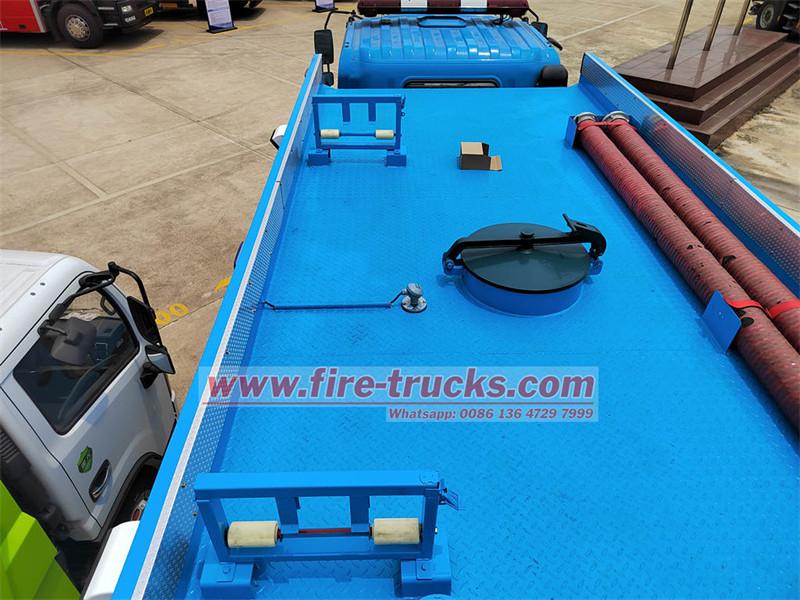

The HOWO mini firefighting truck's superstructure is meticulously designed for practicality and reliability. The water tank is constructed from high-quality carbon steel with internal anti-rust treatment, featuring a DN470 quick-opening manhole cover, DN65 overflow ports, and dual DN65 water-filling inlets for rapid water replenishment. The drainage system is equipped with a DN40 ball valve for easy operation.

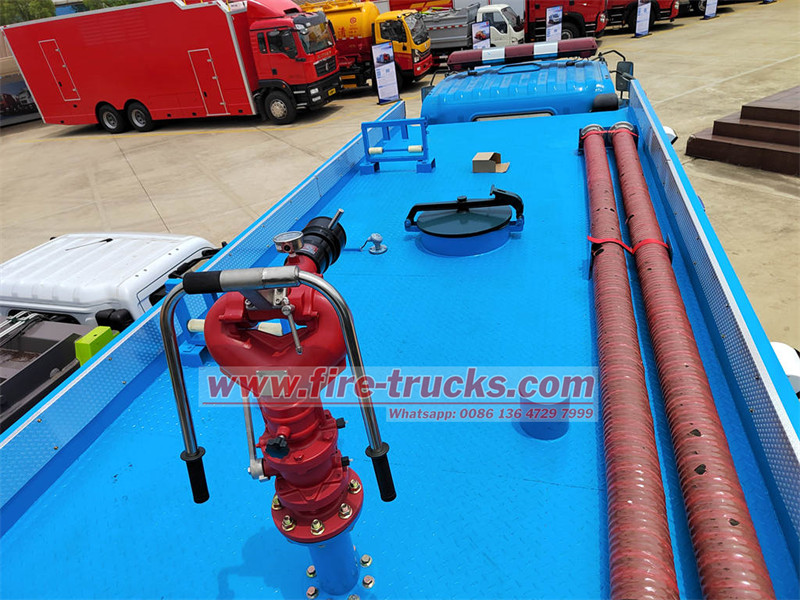

The fire pump system is the heart of this HOWO light fire tanker truck. The CB10/30 normal-pressure pump delivers a rated flow of 30L/s at 1.0 MPa, with a maximum suction depth of 7 meters, capable of handling most initial-stage fires. The roof-mounted PS8/30W fire monitor has a range exceeding 60 meters, with an elevation range of -30° to +70° and 360° horizontal rotation, providing firefighters with flexible fire suppression control.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
HOWO mini pumper fire truck specifications |
||
Truck model |
PT5067GXFSG |
|
Cab |
HOWO single cabin |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
85 |
|
Overall dimension (mm) |
6220x2000x2850 |
|
GVW (kg) |
6700 |
|
Curb weight (kg) |
4500 |
|
Wheelbase(mm) |
3360 |
|
Tire |
7.00R16, 6+1 pcs |
|
Gear box |
6-speed, manual |
|
Fuel tank |
120 L |
|
Axle |
Front axle load |
2400 kg |
Rear axle load |
4200 kg |
|
Engine |
Fuel Type |
Diesel fuel |
Brand |
Yunnei |
|
Model |
YN4102QBZL |
|
Displacement (ml) |
3760 |
|
Max output power (kW) |
85 kW |
|
Max hose power |
116 HP |
|
Tank |
Material |
High quality carbon steel plate, anti-rust treatment inside |
Volume |
2000 L |
|
Tank configuration |
Manhole: One DN470 manhole, equipped with a quick-lock/unlock device Overflow Port: One DN65 overflow port Drain Port for Residual Water: One DN40 drain port for residual water, with ball valve Water Filling Port: One DN65 connection on each side (left and right) of the water tank |
|
Fire pump |
Model |
CB10/30 |
Type |
Normal pressure fire pump |
|
Rated flow |
30 L/s |
|
Rated pressure |
1.0 Mpa |
|
Max. suction depth |
7 m |
|
Fire monitor |
Model |
PS8/30W |
Rated flow |
30 L/s |
|
Rated pressure |
0.8 Mpa |
|
Range |
≥60 m |
|
Elevation angle |
≥70° |
|
Depression angle |
≤ -30° |
|
Horizontal rotation angle |
≥360° |
Product Features
1. Compact & Maneuverable Design
With overall dimensions of 6220×2000×2850mm and a 3360mm wheelbase, this HOWO water tender fire truck easily navigates narrow streets and confined spaces like old residential areas, overcoming access limitations faced by larger fire engines.
2. Reliable Power & High Efficiency
Equipped with a Yunnei YN4102QBZL diesel engine (116HP) paired with a 6-speed manual transmission, it reaches a top speed of 85km/h. The 120L fuel tank ensures extended operation, enabling rapid response to initial-stage fires.
3. Professional Firefighting System
Features a CB10/30 normal-pressure fire pump (30L/s flow rate) and PS8/30W fire monitor (≥60m range), supported by a 2000L anti-corrosion carbon steel water tank for sustained firefighting operations in small-to-medium scale emergencies.
4. User-Friendly Operation
The 360° rotatable fire monitor with -30°~+70° elevation adjustment enables single-operator control. Quick-opening manhole cover and dual-side water inlets enhance operational efficiency.
5. Cost-Effective Maintenance
Built on proven HOWO chassis with high parts commonality and simple yet robust structure, it offers economical operation - an ideal solution for budget-conscious townships, communities, and industrial parks establishing mini fire stations.

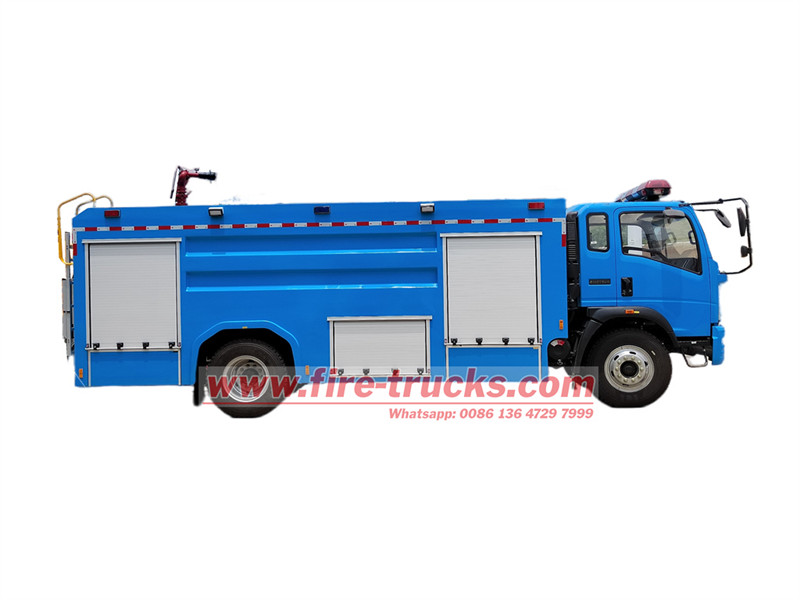

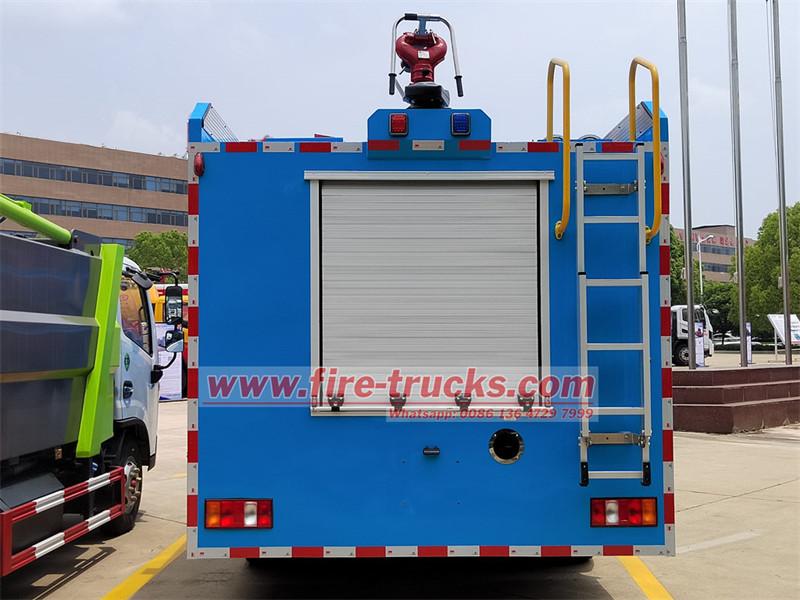

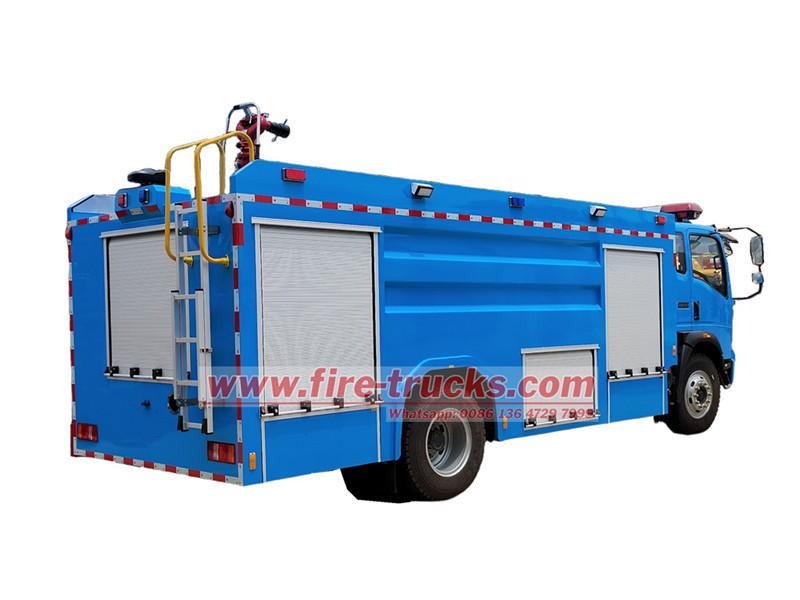

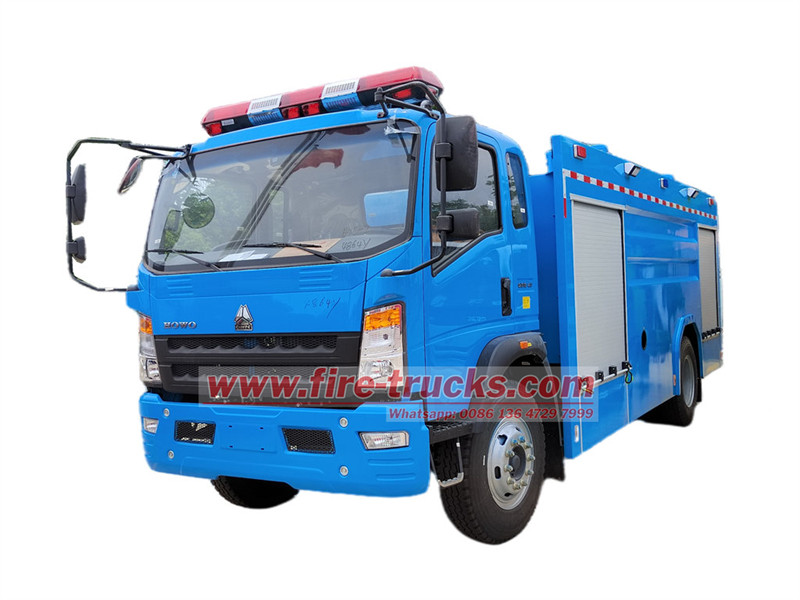

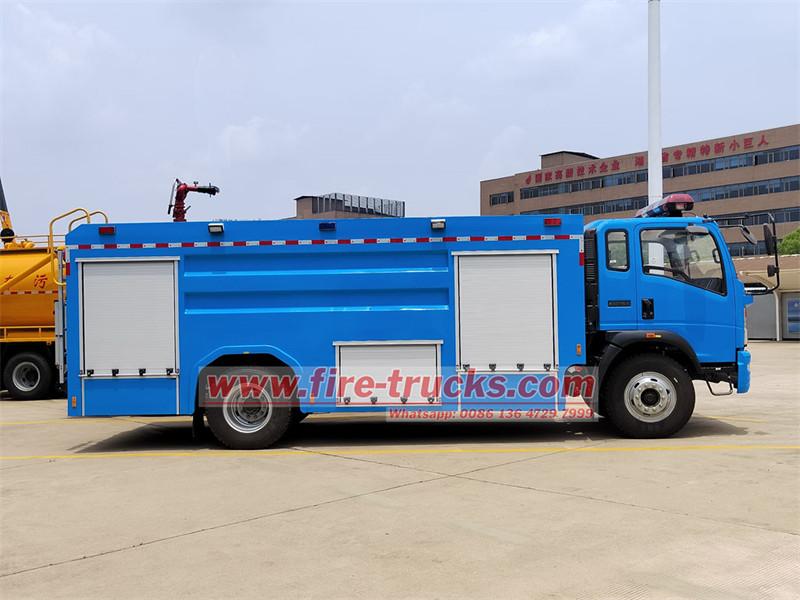

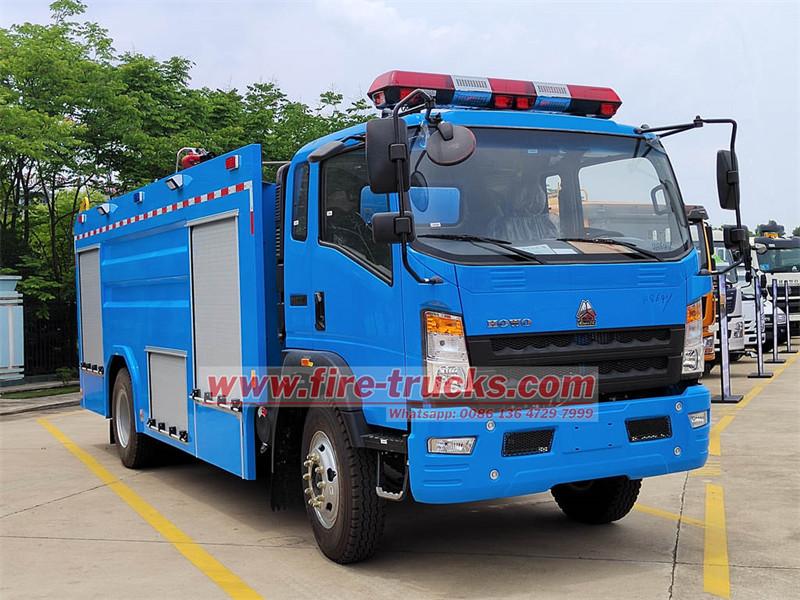

Detailed Pictures
